This guide shows you how to use Salesforce as:
  • An OAuth provider along with the ngrok OIDC Traffic Policy action to secure your ngrok resources
  • The primary IdP for your endpoints. The OIDC Traffic Policy action will supplement an ID token that will be used to identify users that log in to your endpoint
Since Salesforce is currently not a supported OAuth provider by ngrok, this allows you to use its OAuth capabilities and add an extra layer of authorization to your endpoints.

​
Why use OIDC to secure your endpoints

The OIDC Traffic Policy action allows you to control access to your upstream services and configure routing based on the information that ngrok stores about user’s authentication/authorization status.

​
Why use Salesforce as an IdP

Using Salesforce OAuth enables you to provide single sign-on (SSO) for users of your application, API, or database without needing separate credentials. ngrok handles the authentication transparently. Your organization’s personnel in charge of security and administration can manage all external application integrations from one place.

​
What you’ll need

  • A Salesforce developer account with administrative rights to create apps.
  • An ngrok Enterprise account with an authtoken or admin access to configure an endpoint with Traffic Policy and OpenID Connect.

​
1. Create a Salesforce external client app

Navigate to the App Manager in Salesforce. Click New External Client App.

​
2. Configure the external client app

In your Salesforce dashboard, go to Policies > App Policies. Set the start page to OAuth.

​
3. Configure OAuth settings

  • In the Basic Information section:
    • Set the external client app name to ngrok or whatever you would like.
  • Go to the OAuth Settings section:

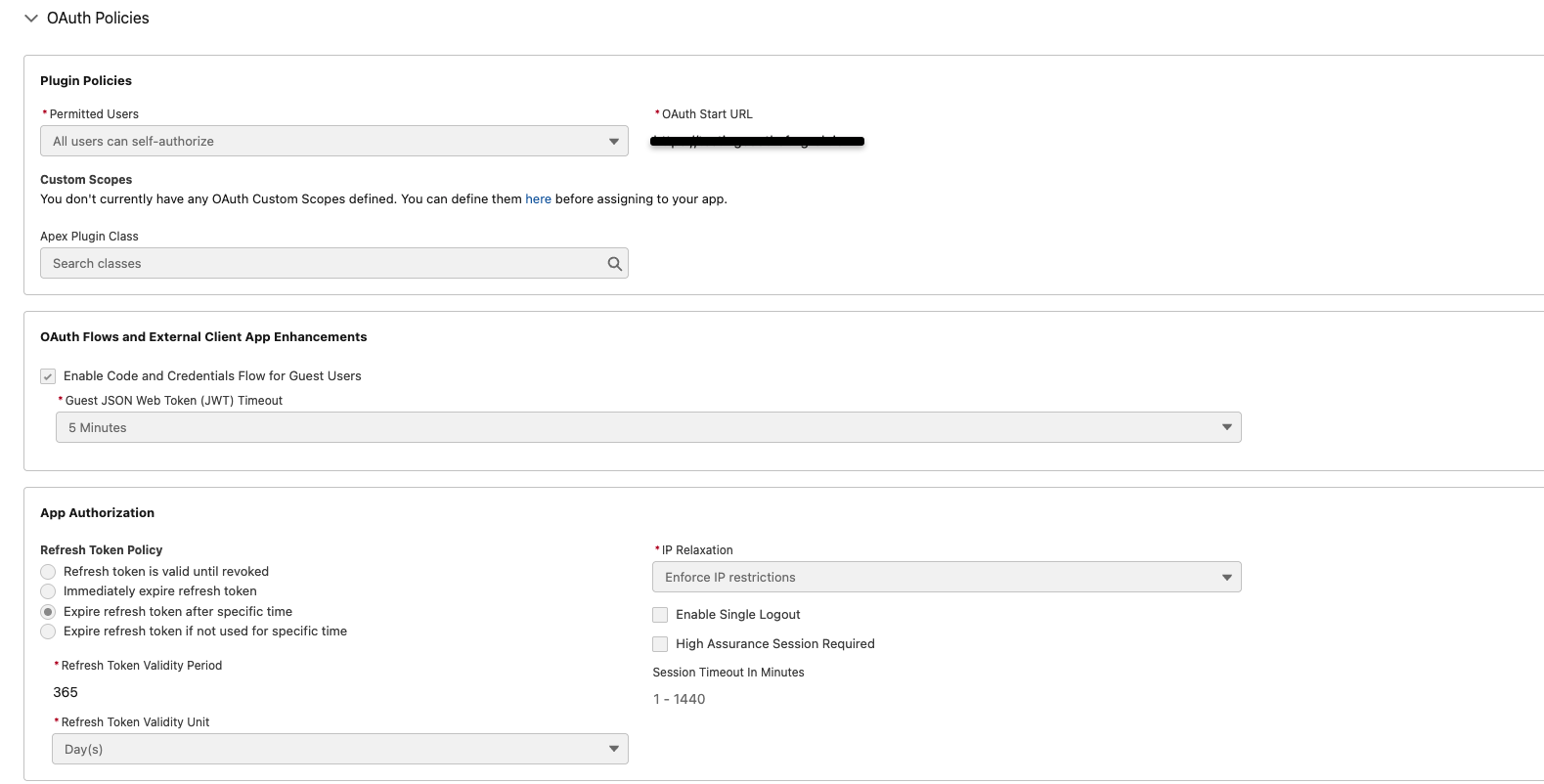

    • Under App Settings > OAuth Policies:
      • Set the Callback URL to https://idp.ngrok.com/oauth2/callback.
      • Make sure “All Users can self authorize” is checked.
      • Make sure the following scopes are selected.
      • Use the Cloud Endpoint URL you create in the next step as your OAuth Start URL.
      • Under Permitted Users, make sure all users can self authorize.
    • Under Flow Enablement:
      • Enable Authorization Code and credentials flow.
    • Under Security:
      • Check require secret for Web Server flow.
      • Require secret for Refresh Token Flow.
      • Make sure Require Proof Key for Code Exchange (PKCE) is not enabled, as this will throw an error when you log in to your endpoint.

​
4. Obtain the client ID and client secret

After saving your external client app, go to Settings and then under OAuth Settings click the following button to see your Client ID and Client Secret.

​
5. Create a Cloud Endpoint and configure OIDC Traffic Policy action

Log in to your ngrok dashboard and navigate to the Endpoints section. Click Create Endpoint, then select Cloud Endpoint. Follow the steps in this guide to create your Cloud Endpoint. Add the following Traffic Policy to your endpoint:
traffic_policy:
  actions:
    - type: oidc
      issuer_url: <your-salesforce-issuer-url>
      client_id: <your-salesforce-client-id>
      client_secret: <your-salesforce-client-secret>
      scopes:
        - openid
        - profile
        - email
Replace <your-salesforce-issuer-url>, <your-salesforce-client-id>, and <your-salesforce-client-secret> with the values you obtained from Salesforce in the previous steps. The issuer URL will follow the format: https://[yourdomain]-dev-ed.develop.my.salesforce.com. Click Save. You have now successfully created a Cloud Endpoint with OIDC Traffic Policy action using Salesforce as an IdP.

​
(Optional) Configure an Agent Endpoint with Salesforce OAuth from the CLI

You can use the following command to start an Agent Endpoint with the same credentials you used in your Traffic Policy. To learn more about when to use Agent vs Cloud endpoints, check out the documentation on endpoints.
ngrok http 3000 --oidc <salesforce_url> \
--oidc-client-id <salesforce_client_id> \
--oidc-client-secret <salesforce_client_secret> \
--url <domain>
